Additional information
| Brand | Vaari Sensors |
|---|---|

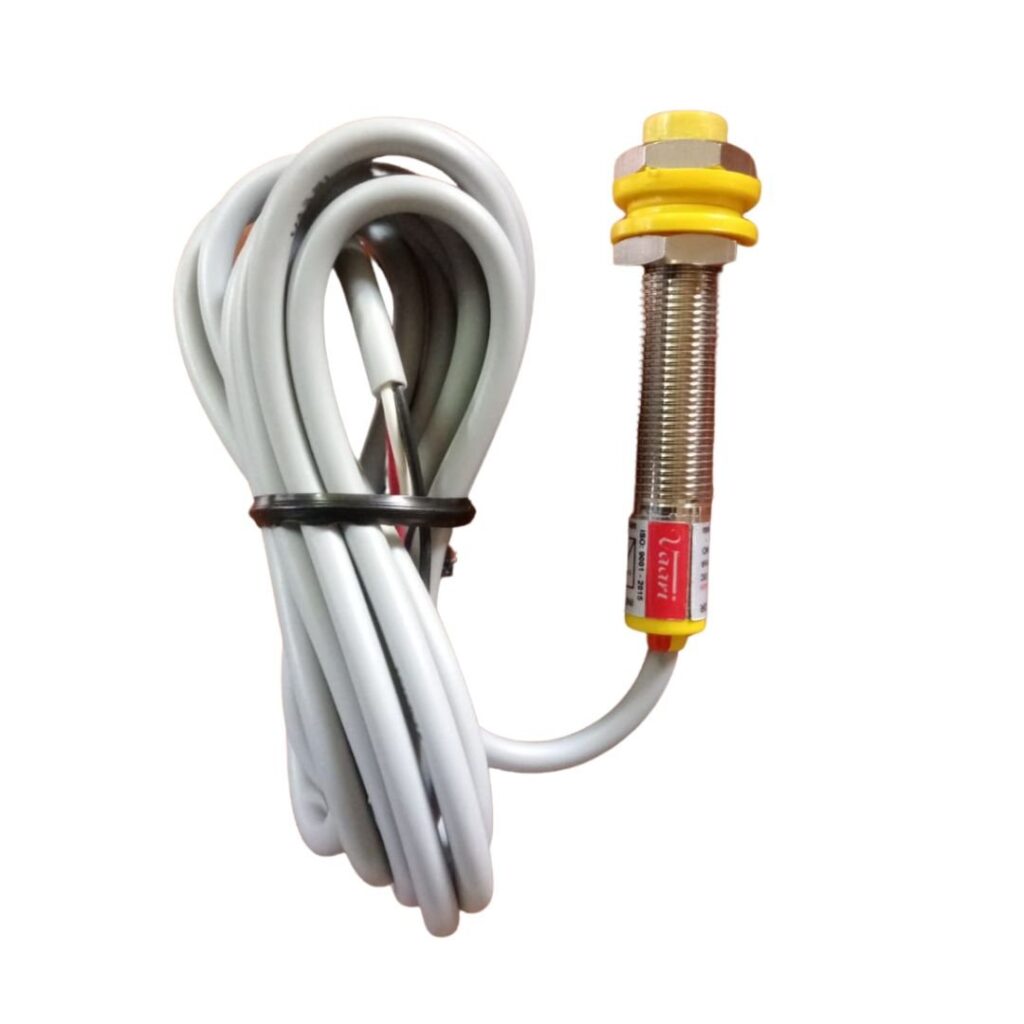

| Type | Inductive Proximity Sensor |
| Connection: | 2m PUR/3 x 0,14 mm2 |
| Connection type: | Cable |
| Outlet: | PNP NC |
| Installation type: | Non Flush |
| LED | Yes |
| No-load current: | 10 mA |
| Nominal voltage: | 24 VDC |
| Reproducibility: | 1 % |
| Switching hysteresis: | 10 % |
| Diameter | M-12 |
| Length | 60mm |
| Switching distance change to sensing | 4mm |
| Frequency | 2KHz |
| Material | Nickal plated Brass |
| Protection class: | IP 67 |
| Voltage drop: | 0 |
| Voltage type: | VDC |
| Voltage range: | 10 – 30 V |
| Ampacity: | 300 mA |
| Temperature drift: | 10 °C |
| Environment temperature: | -25 bis 70 °C |
