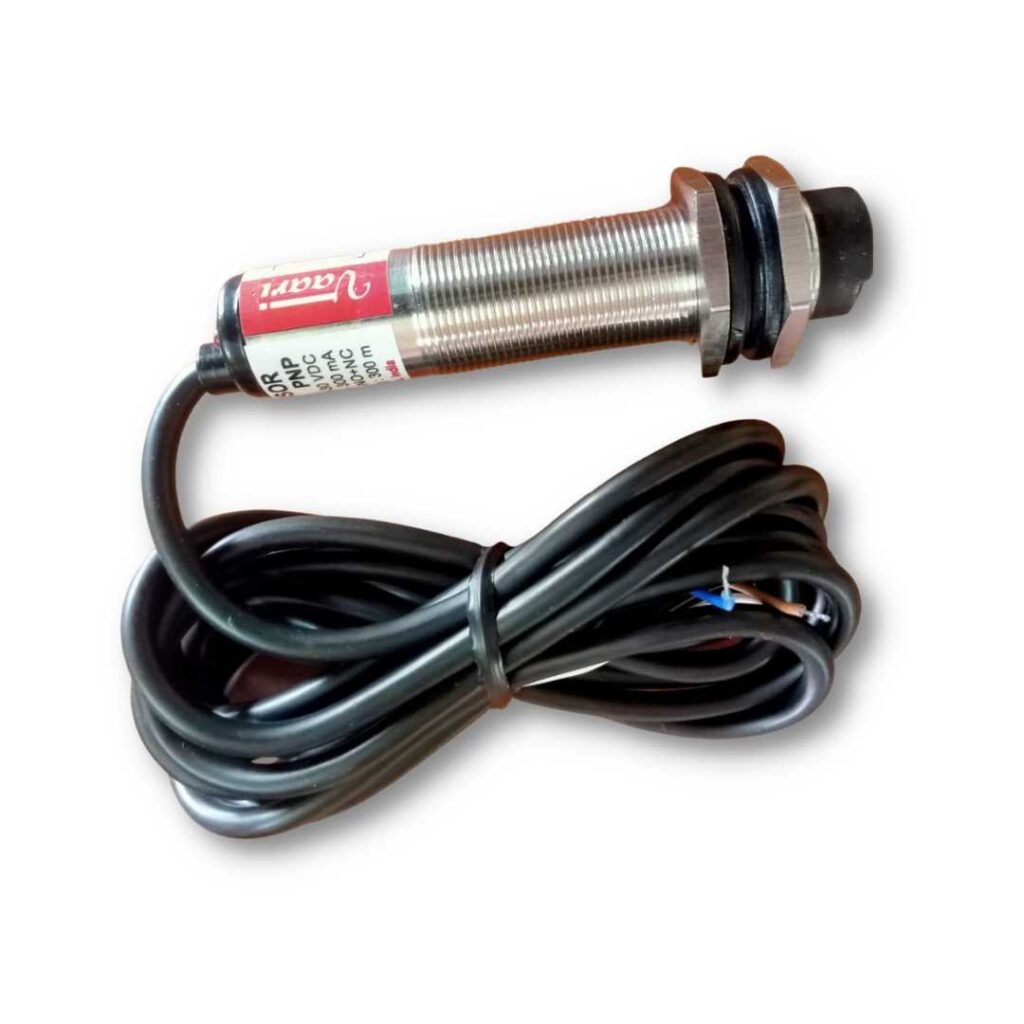

Vaari Photo Electric Sensor VPE-B18NS3H-NPN

0.00

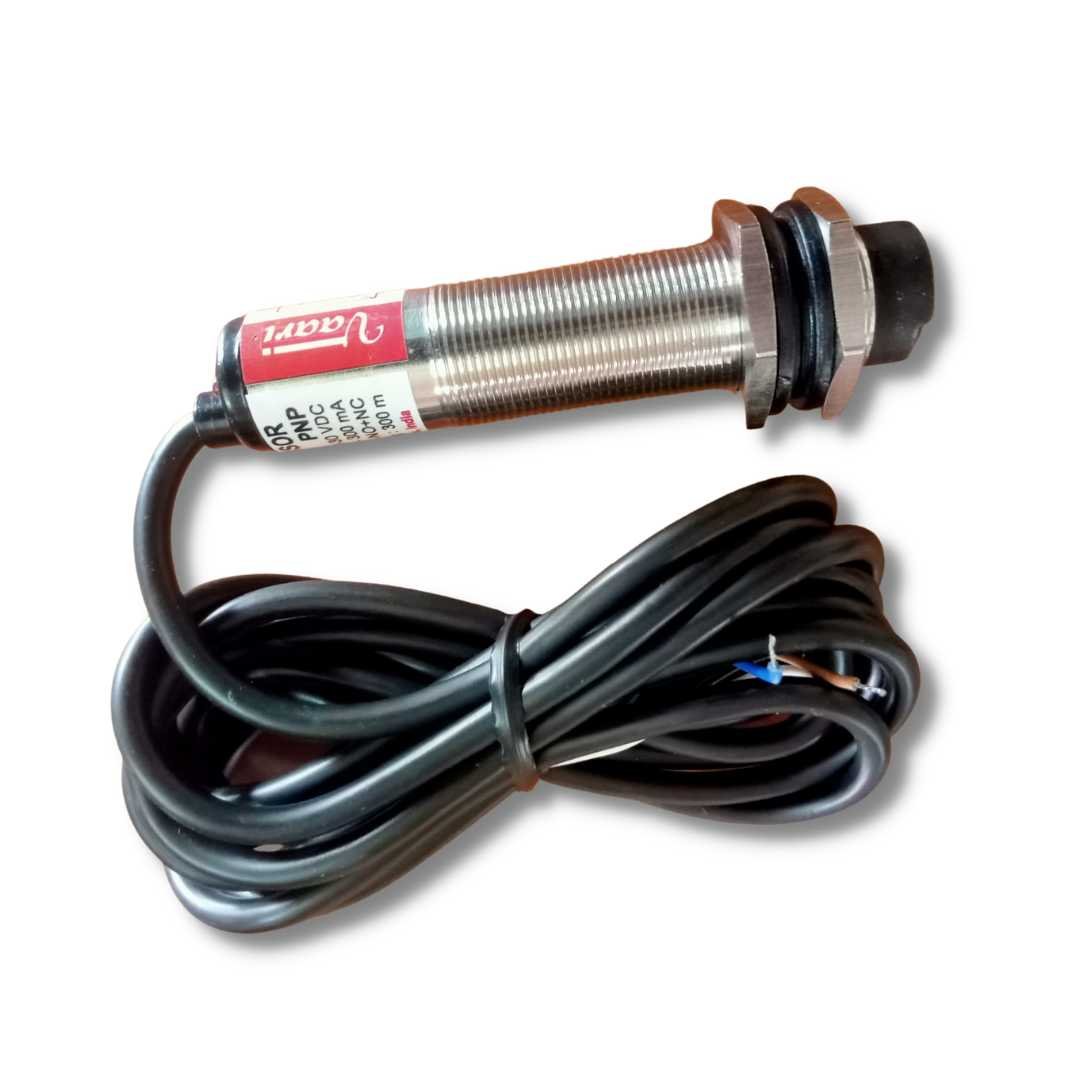

Photo Electric Sensor VPE-B18LT300-WX-P1 for high performance.

Download Technical Specification PDF

download_pdf

Additional information

Brand

Vaari Sensors

Type

Photo Electric Sensor

Dimension

M18

Supply Voltage

10-30VDC

Maximum Load Current

200mA / 400mA

Sensing Distance

50-300 mm

Operating Temperature

-25*C + 55*C

Output Transistor

NPN NO+NC

Temperature Drift

5% typical

Reverse polarity protection

YES

Short Circuit protection

YES

Status Indication

LED Indication

Size

M18 X 85 MM

Voltage Drop

<2V
